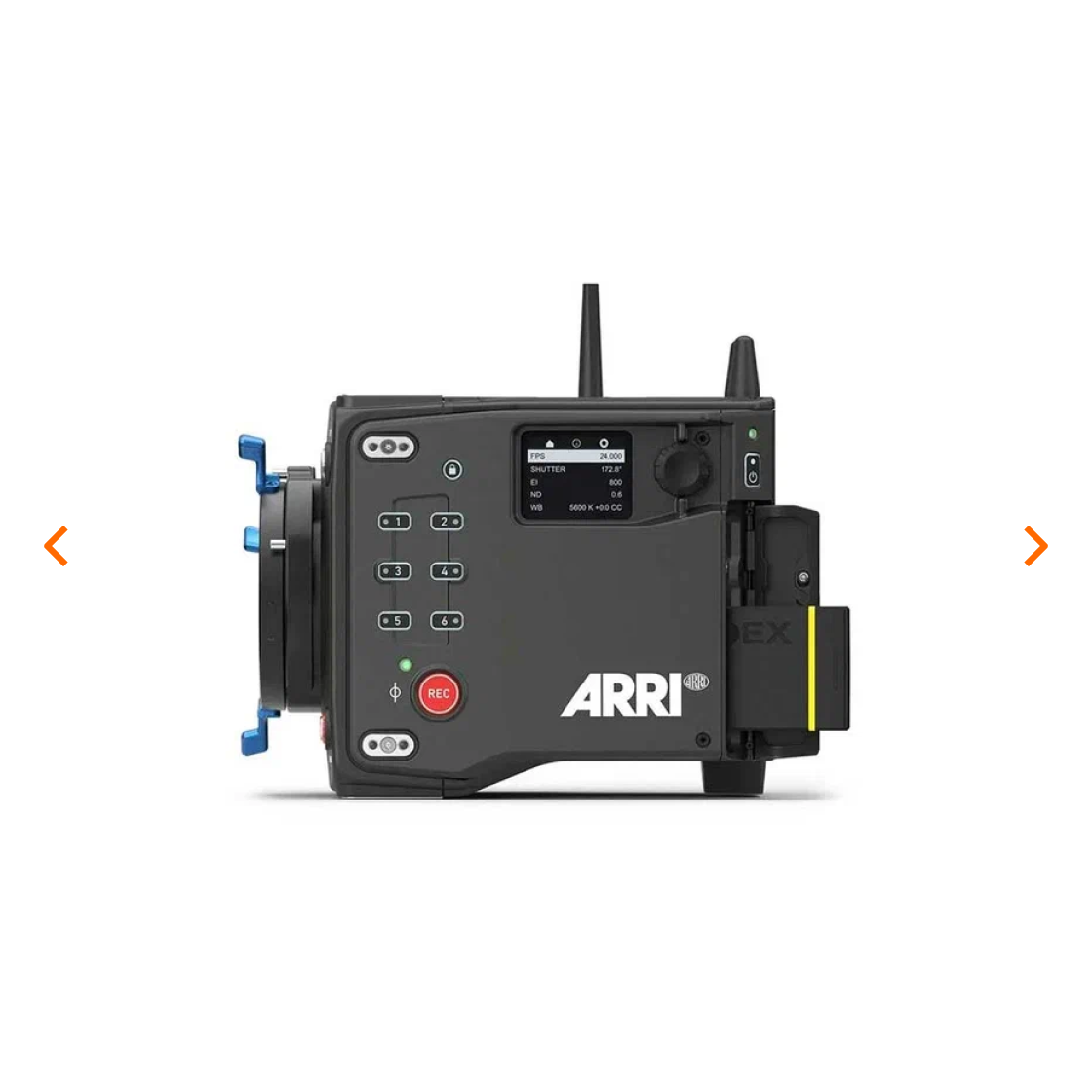

Arri Alexa 35



Home / Cameras/Arri Alexa 35

Arri Alexa 35

  • Short Description
    • Sensor — Super 35 (4608×3164)
    • Dynamic Range — 17 stops
    • Native IE — 800
    • Internal ND — 0.6, 1.2, 1.8
    • FPS — 0.75 — 120
    • Log — LogC4
    • Mount — LPL / PL / EF / L
    • Weight ~ 2.9kg (camera body with three antennas and LPL Mount (LBUS))

  Click here to learn more information from the manufacturer’s website



Arri Alexa 35

Short Description

  • Sensor — Super 35 (4608×3164)
  • Dynamic Range — 17 stops
  • Native IE — 800
  • Internal ND — 0.6, 1.2, 1.8
  • FPS — 0.75 — 120
  • Log — LogC4
  • Mount — LPL / PL / EF / L
  • Weight ~ 2.9kg (camera body with three antennas and LPL Mount (LBUS))





Click here to learn more information from the manufacturer’s website





Sensor Type Super 35 format ARRI ALEV 4 CMOS sensor with Bayer
pattern color filter array
Sensor Maximum Number of Photosites and Size 4608 x 3164
27.99 x 19.22 mm / 1.102 x 0.757″
Ø 33.96 mm / 1.337″
Sensor Frame Rates 0.75 — 120 fps*
Weight ∼2.9 kg / 6.4 lbs (camera body with three antennas and LPL Mount (LBUS))
Photosite Pitch 6.075 μm
Sensor Active Image Area (photosites) 4.6K 3:2 Open Gate: 4608 x 3164*
4.6K 16:9: 4608 x 2592*
4K 16:9: 4096 x 2304
4K 2:1: 4096 x 2048
3.8K 16:9: 3840 x 2160
3.3K 6:5: 3328 x 2790*
3K 1:1: 3072 x 3072*
2.7K 8:9: 2743 x 3086
2K 16:9 S16: 2048 x 1152
Sensor Active Image Area (dimensions) 4.6K 3:2 Open Gate: 28.0 x 19.2 mm / 1.102 x 0.756″
4.6K 16:9: 28.0 x 15.7 mm / 1.102 x 0.618″
4K 16:9: 24.9 x 14.0 mm / 0.980 x 0.551″
4K 2:1: 24.9 x 12.4 mm / 0.980 x 0.490″
3.8K 16:9: 23.3 x 13.1 mm / 0,918 x 0.516″
3.3K 6:5: 20.22 x 16.95 mm / 0.796 x 0.693″
3K 1:1: 18.7 x 18.7 mm / 0.737 x 0.737″
2.7K 8:9: 16.7 x 18.7 mm / 0.656 x 0.738″
2K 16:9 S16: 12.4 x 7.0 mm / 0.490 x 0.276″
Recording File Container Size (pixel) 4.6K 3:2 Open Gate: 4.6K (4608 x 3164)
4.6K 16:9: 4.6K (4608 x 2592), 4K (4096 x 2304)
4K 16:9: 4K (4096 x 2304), UHD (3840 x 2160), 2K (2048 x 1152),
HD (1920 x 1080)
4K 2:1: 4K (4096 x 2048)
3.8K 16:9: UHD (3840 x 2160)
3.3K 6:5: 3.3K (3328 x 2790), 4K (4096 x 1716)
3K 1:1: 3K (3072 x 3072), 3.8K (3840 x 1920)
2.7K 8:9: UHD (3840 x 2160)
2K 16:9 S16: 2K (2048 x 1152)
Dynamic Range 17 stops
Exposure Index Adjustable from EI 160 — 6400 in 1/3 stops
Shutter Electronic shutter, 5.0°- 356° or 1s — 1/8000s
Recording Formats MXF/ARRIRAW*
MXF/Apple ProRes 4444 XQ
MXF/Apple ProRes 4444
MXF/Apple ProRes 422 HQ
Recording Frame Rates ARRIRAW 4.6K 3:2 Open Gate: 35 / 75 fps
ARRIRAW 4.6K 16:9 — 4.6K: 45 / 75 fps
ARRIRAW 4K 16:9 — 4K: 55 / 120 fps
ARRIRAW 4K 2:1 — 4K: 65 / 120 fps
ARRIRAW 3.8K 16:9 — UHD: 65 / 120 fps
ARRIRAW 3.3K 6:5 — 3.3K: 55 / 100 fps
ARRIRAW 3K 1:1 — 3K: 55 / 100 fps
Apple ProRes 4.6K 3:2 Open Gate: 60 / 60 fps
Apple ProRes 4.6K 16:9 — 4K: 75 / 75 fps
Apple ProRes 4K 16:9 — 4K: 100 / 100 fps
Apple ProRes 4K 16:9 — UHD: 120 / 120 fps
Apple ProRes 4K 16:9 — 2K: 120 / 120 fps
Apple ProRes 4K 16:9 — HD: 120 / 120 fps
Apple ProRes 4K 2:1 — 4K: 120 / 120 fps
Apple ProRes 3.8K 16:9 — UHD: 120 / 120 fps
Apple ProRes 3.3K 6:5 — 3.3K: 75 / 75 fps
Apple ProRes 3.3K 6:5 — 4K 2.39:1 Ana. 2x: 90 / 90 fps
Apple ProRes 3K 1:1 — 3K: 90 / 90 fps
Apple ProRes 3K 1:1 — 3.8K 2:1 Ana. 2x: 100 / 100 fps
Apple ProRes 2.7K 8:9 — UHD 16:9 Ana. 2x: 100 / 100fps
Apple ProRes 2K 16:9 S16 — 2K: 120 / 120 fps
(Compact Drive 1TB / 2TB)
Lens Squeeze Factors 1.00, 1.25, 1.30, 1.33, 1.50, 1.65, 1.80, 1.85, 2.00*
Lens Mounts ARRI LPL Mount (LBUS)
ARRI PL-to-LPL Adapter
ARRI PL Mount (LBUS)
ARRI PL Mount (Hirose)
ARRI EF Mount (LBUS)
Leitz M Mount for ARRI
Power Input 1x PWR (LEMO 8-pin)
1x BAT (camera rear interface / battery adapter)
20.5 — 33.6 V DC
Power Consumption ~ 90 W (Camera body and MVF-2)
Power Outputs 1x RS (Fischer 3-pin) for 24 V accessory power out, start/stop and shutter pulse
1x 12 V (LEMO 2-pin) for 12 V accessory power out
1x LBUS (LEMO 4-pin) for lens motors & 24 V power out, daisy-chainable
1x AUDIO (LEMO 6-pin) for balanced stereo line in and 12 V accessory power out
1x ETH (LEMO 10-pin) for remote control, service and 24 V accessory power out
With Power Distribution Module PDM-1: additionally 4x 24 V, 2x 12 V and 1x D-Tap
With LPS-1 Fiber Camera Adapter: additionally 1x 24 V and 3x 12 V
Measurements (HxWxL) 147 x 152.5 x 203 mm / 5.8 x 6.0 x 8.0″
(camera body with LPL lens mount)
Operating Temperature -20° C to +45° C / -4° F to +113° F @ 95% relative humidity max, non condensing, splash and dust proof through sealed electronics, IP 51
Storage Temperature -30° C to +70° C / -22° F to +158° F
